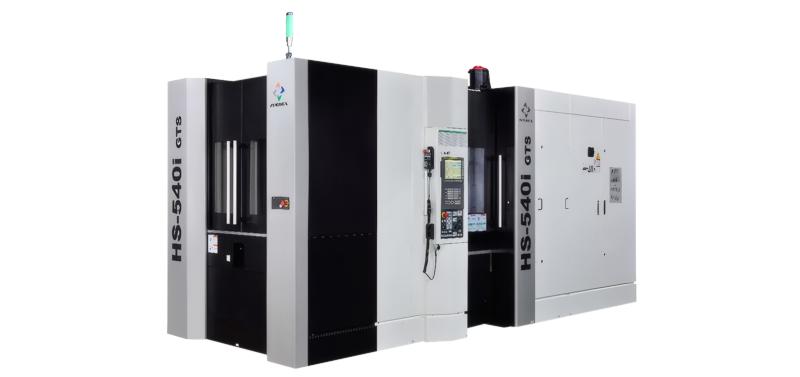

HS-540i GTS-220T

Overview

HS-540i GTS-220T with new 8 Pallet Pool Expansion Unit.

  • AVEREX-FANUC MPro I Controller with Value Packaged Features
  • One-piece Stepped Machine Base with Heavy Ribbed
  • Three Points Machine Leveling
  • 100% Hand-scraping for Geometry Accuracy and Rigidity
  • BBT Dual Surface Contact Spindle
  • 1° Index Table (Optional 0.001° Full Rotary Table)
  • THK® Roller Guide Ways
  • TSUBAKI® Ballscrews
  • Thermal Compensation (Chilled Spindle)
  • Pressurized Oil-Air Lubrication Spindle, Ballscrews and Guide Ways
  • Mechanical Lock Pallet Clamping System with Air Seal Detection
  • Overhead Automatic Pallet Wash System
  • 30 Bar Through Spindle Coolant, Prepared for Optional 70 Bar
Whitehouse Machine Tools Ltd | HS-540i GTS-220T 0

Request a Quote

Technical Data

Travel X,Y,Z
800mm / 800mm / 800mm
Power
37.3 kW
RPM
15,000 RPM
# ATC
80
Pallet-W
500mm
Pallet-L
500mm
Taper
CAT-40/BBT-40 OPT
# Axis
4
Dimensions
193.5" x 104.7" x 103.6"
Weight
28,512 lbs
Control
CNC (AVEREX-FANUC MPro I (0i-MF) USB/CF Card)

Comprehensive Machining Solutions, Tailored to Your Needs

At Whitehouse Machine Tools we work closely with your engineers to provide the best machining solutions. From feasibility studies and machine selection to full project justification we ensure your requirements are fully supported. Our team prepares detailed reports covering efficiency, conditions, available space and staff expertise, with recommendations for tooling, workholding and loading systems. We remain committed to providing expert technical support long after the process has been proposed.
