HS-540i-6APC

Overview

The HS-540iGTS 6APC is fully expandable from the standard 80 ATC to 120 or 220 ATC as needed to boost production efficiency.

  • Large travels: X 800mm x Y 800mm x Z 800mm
  • Large work envelope Ø800mm x 1,000mm
  • One-piece stepped machine base with heavy ribbed
  • 80 tools automatic tool changer
  • Thermal compensation (chilled spindle, bailscrews and bearings)
  • Air cutting through spindle
  • Adopt 400mm / 500mm pallets
  • 15,000 RMP spindle
  • 1G acceleration
  • 1 sec T-T change
  • 5 sec pallet change
  • 66.6 RPM full 4th
  • 2,913 IPM rapid

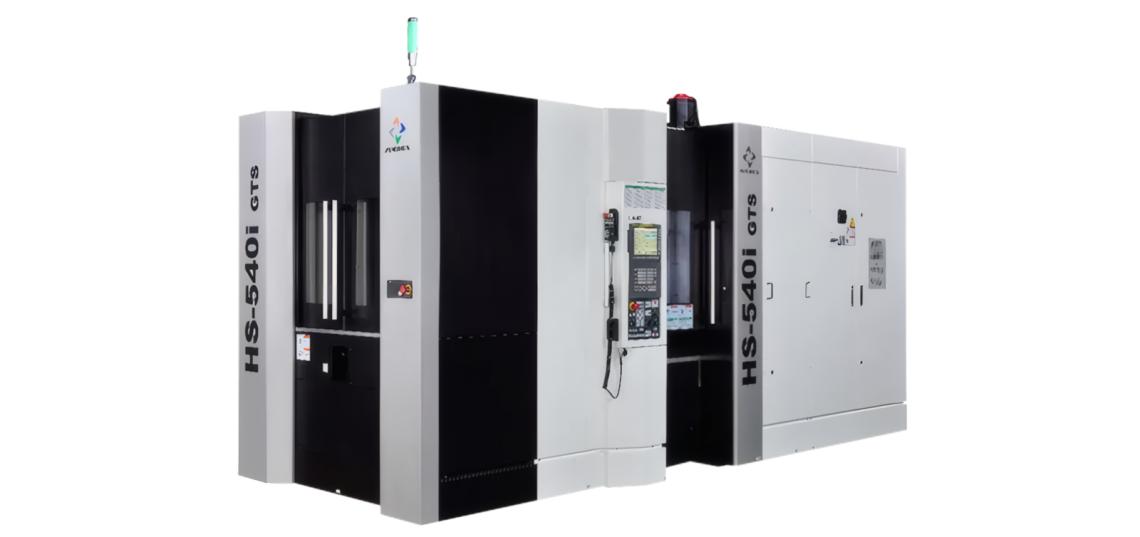

Whitehouse Machine Tools Ltd | HS-540i-6APC 0

Request a Quote

Technical Data

Travel X, Y, Z
800mm / 800mm / 800mm
Power
37.3 kW
RPM
15,000 RPM
ATC
80
Pallet-W
398.78 mm
Pallet-L
398.78 mm
Taper
CAT-40/BBT-40 OPT
Control
CNC (AVEREX-FANUC MPro I (0i-MF) USB/CF Card)
Dimensions
193.5" x 104.7" x 103.6"
Weight
28,512 lbs
