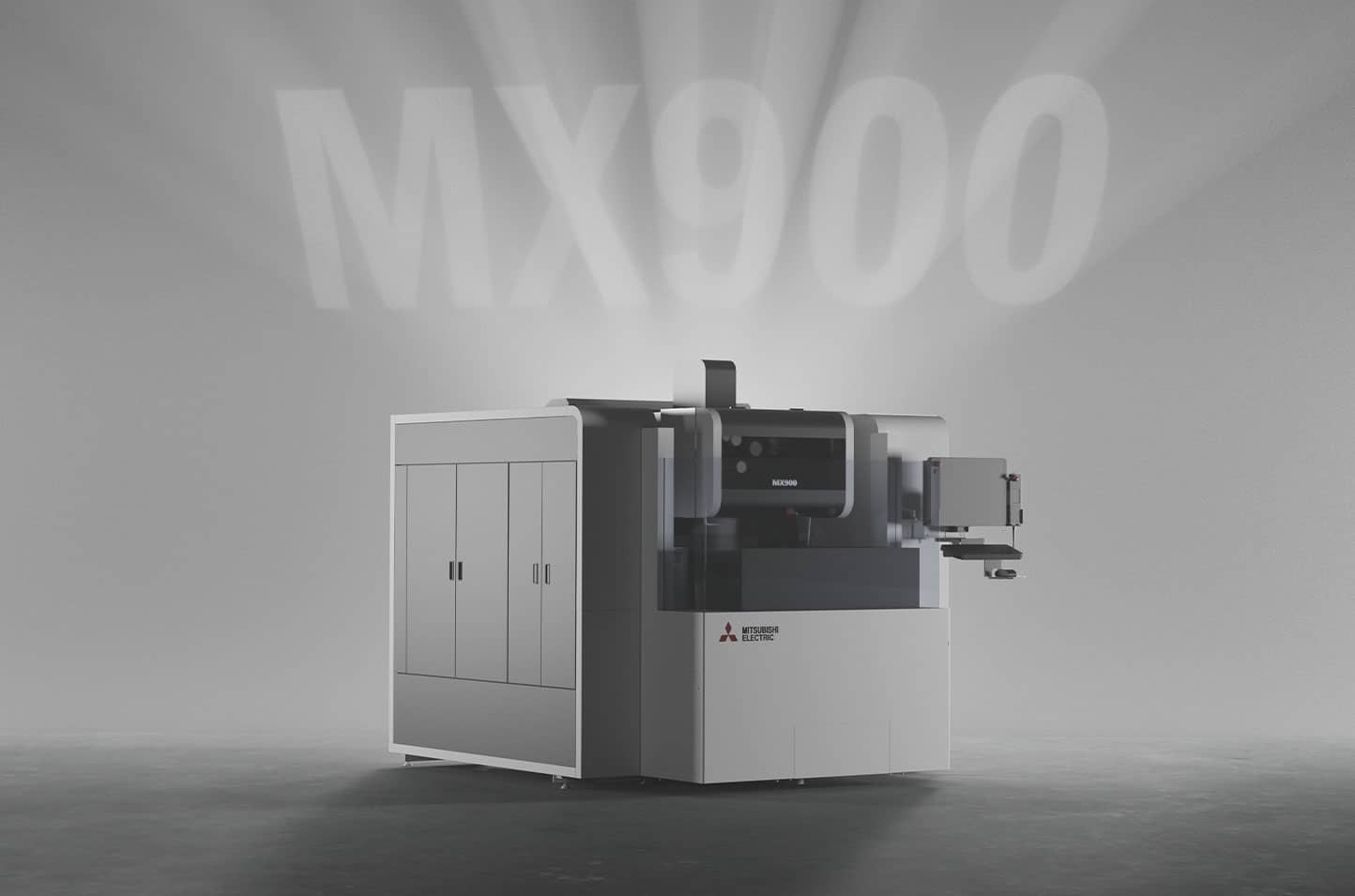

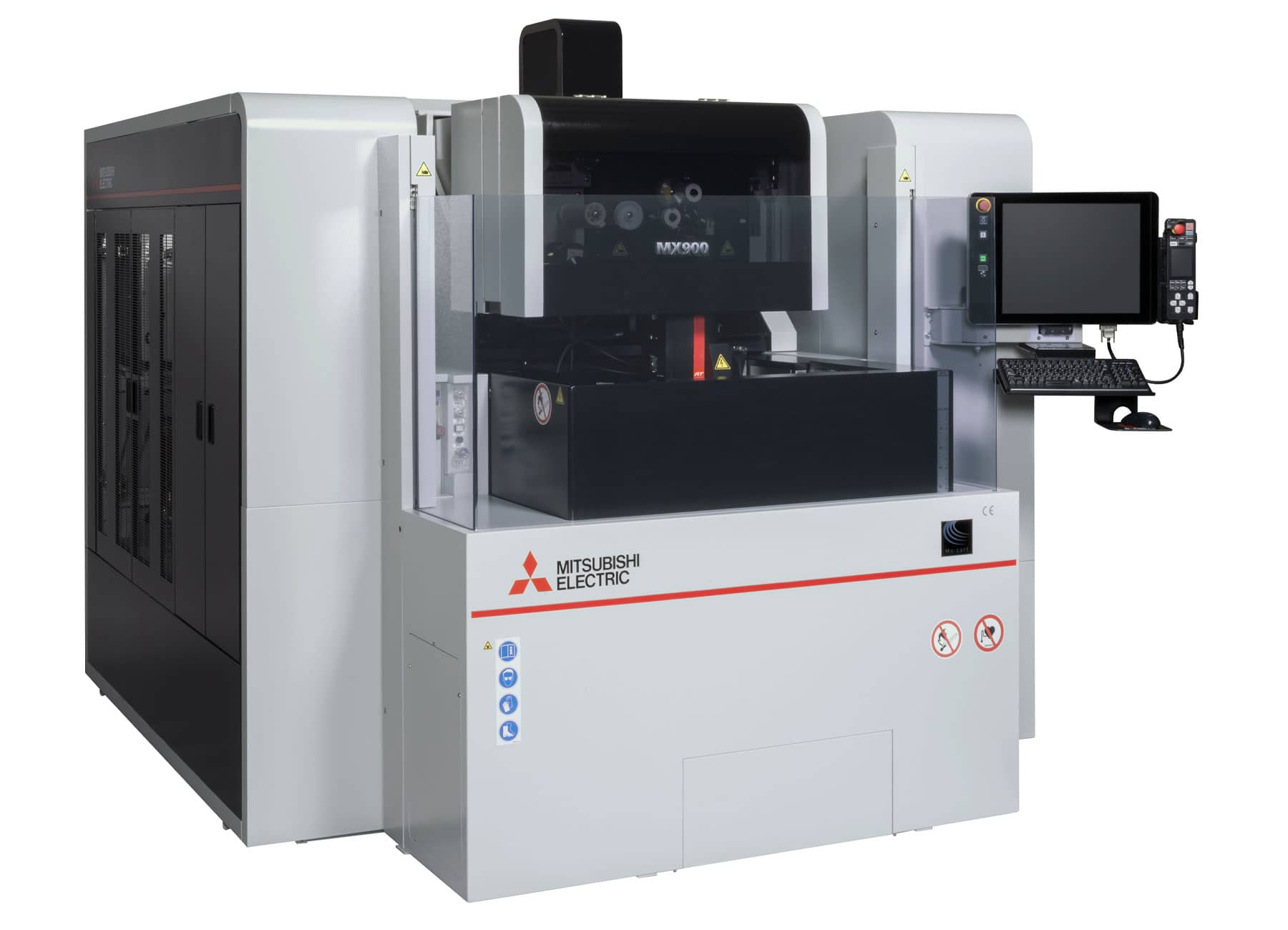

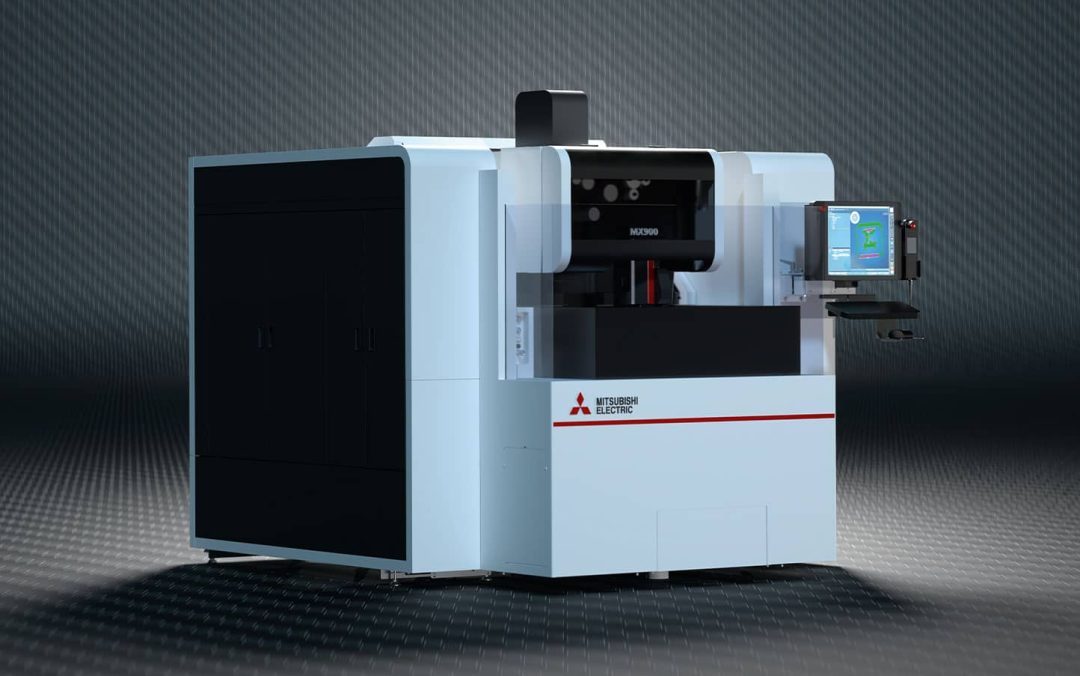

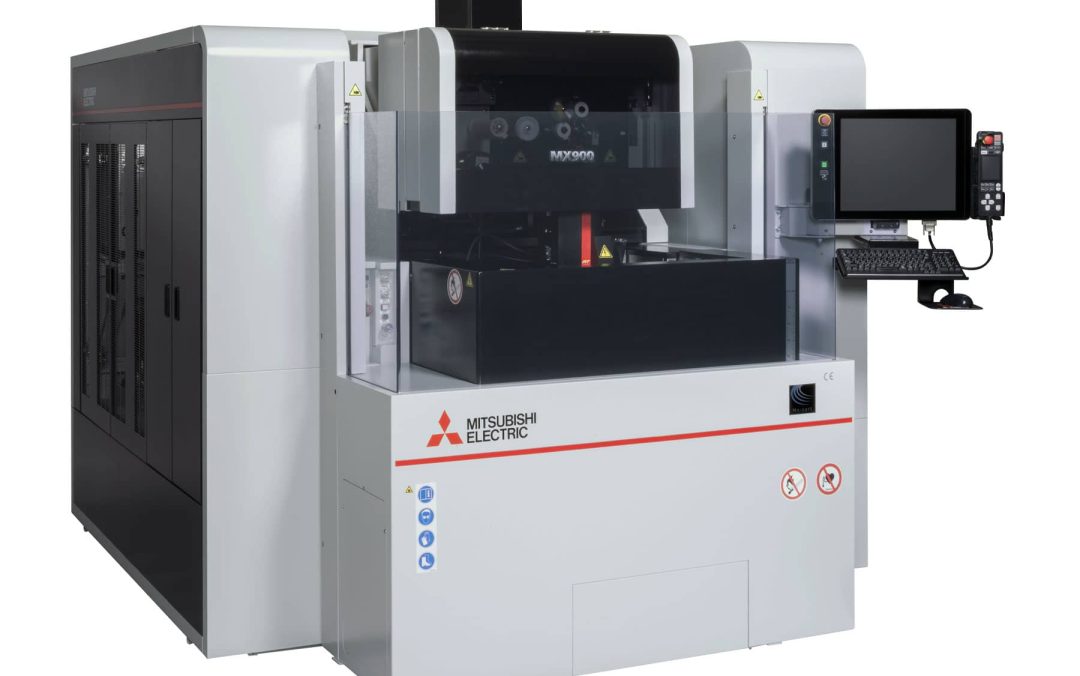

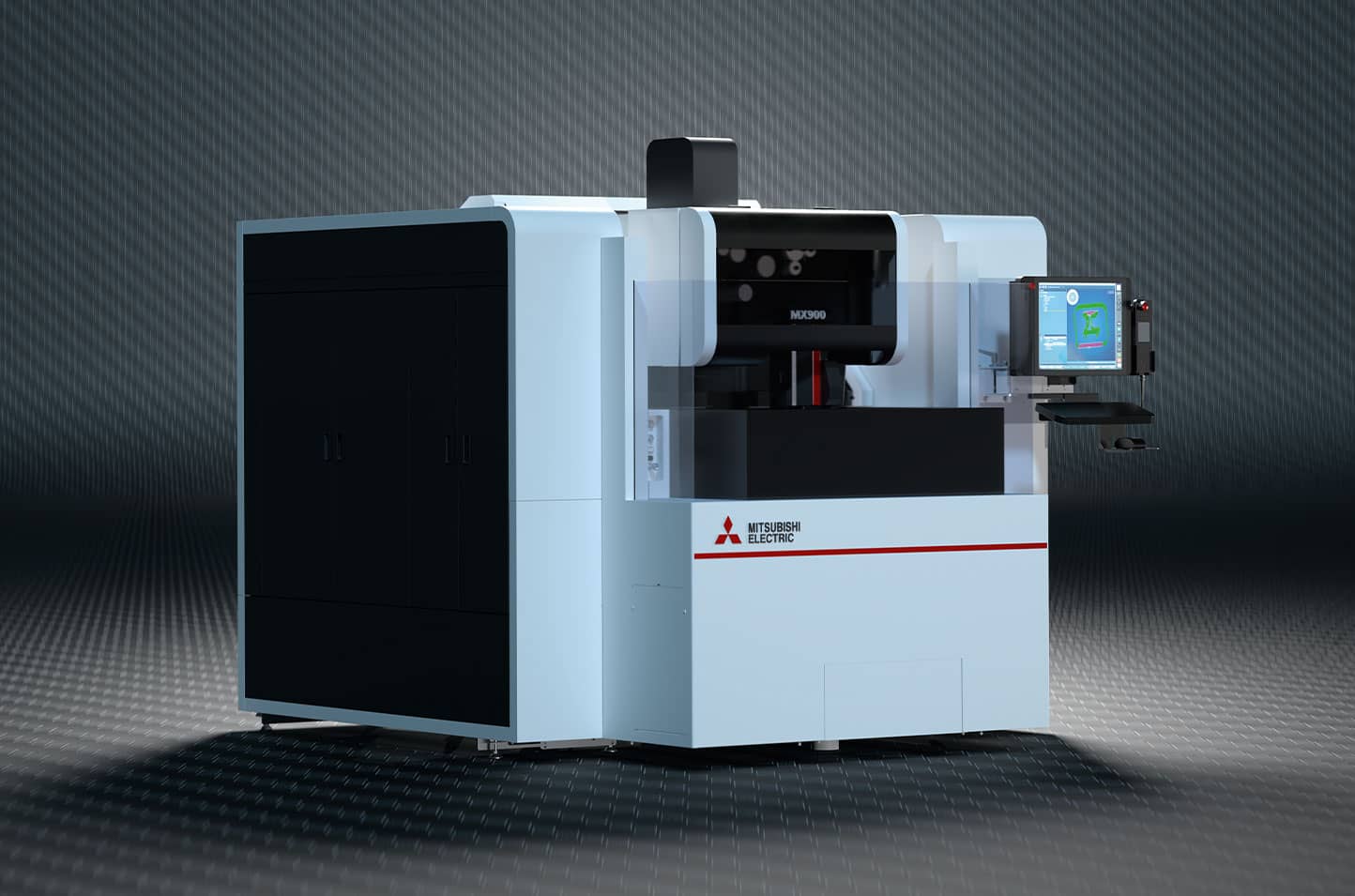

MX900

Overview

The MX900 is Mitsubishi Electric’s cutting-edge solution for high-performance wire EDM machining in oil. Designed to meet the most demanding requirements, the MX900 delivers exceptional precision, smoother surfaces, and enhanced efficiency in every cut. With groundbreaking technology and superior control, it’s the ultimate machine for industries that require flawless precision.

  • High-precision wire erosion EDM for large components
  • Advanced EDM generator for stable and efficient machining
  • Excellent surface finish and reduced electrode wear
  • Rigid construction for superior accuracy and repeatability
  • Intelligent CNC control with automation features
  • Energy-efficient design for lower operating costs
Whitehouse Machine Tools Ltd | MX900 1

Request a Quote

Technical Data

Travel (X / Y / Z) in mm
300 / 300 / 120
Travel (U / V) in mm
(+/- 35)
Taper angle (workpiece height) in °/mm
Max. 15
Max. workpiece dimensions (W x D x H) in mm
500 x 500 x 100
Max. workpiece weight in kg
300
Table dimensions (W x D) in mm
560 x 505
Table layout
Hardened four-side table
Possible wire diameters in mm
0.05–0.2
Wire spool capacity in kg
10
Automatic wire threader / wire chopper
Yes
Overall dimensions (W x D x H) in mm
2335 x 2965 x 2203
Machine weight in kg
3400
Mains voltage
3-phase 400 V/AC ± 10%, 50/60 Hz, 13 kVA

Comprehensive Machining Solutions, Tailored to Your Needs

At Whitehouse Machine Tools we work closely with your engineers to provide the best machining solutions. From feasibility studies and machine selection to full project justification we ensure your requirements are fully supported. Our team prepares detailed reports covering efficiency, conditions, available space and staff expertise, with recommendations for tooling, workholding and loading systems. We remain committed to providing expert technical support long after the process has been proposed.
